Hydraukic Testing Video , The pressure and and the flow kit listed along with components for the kits.
s
HYDRAULIC TEST FITTING KIT TOR4079
$727.31
Contains fittings used to hook up gauges.
APPLICATIONS:

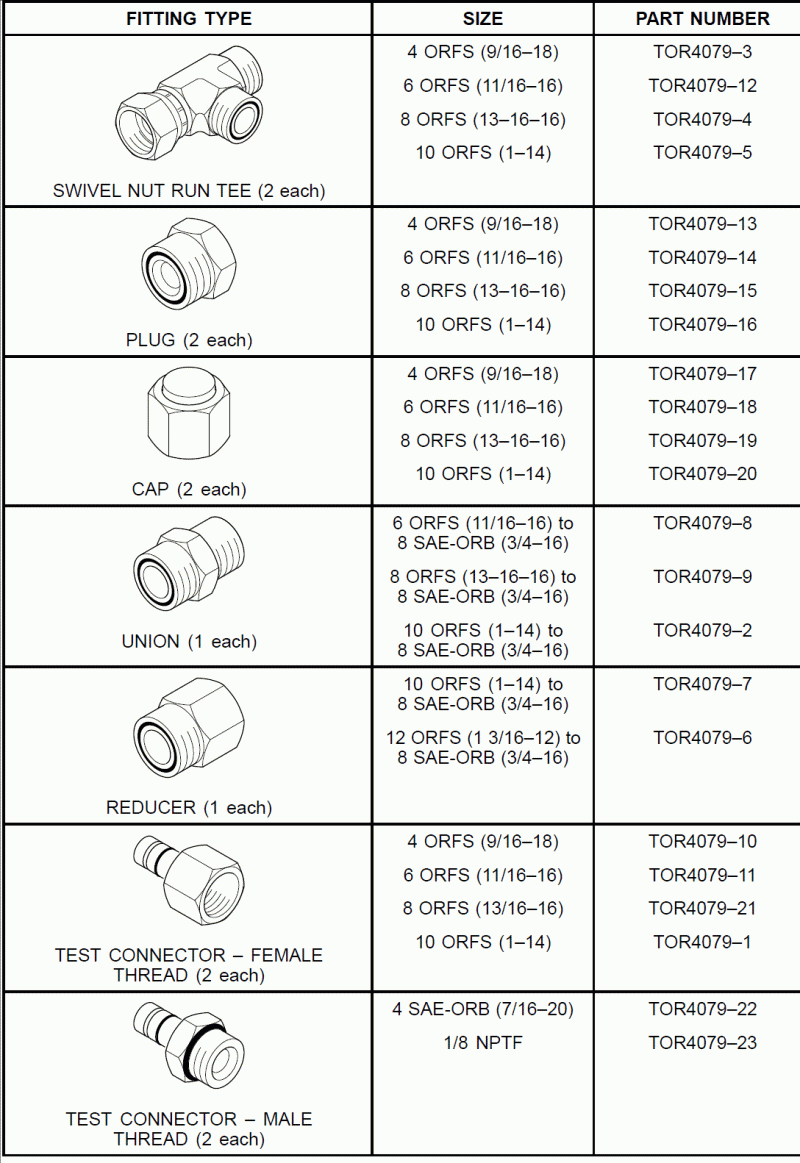

This kit includes a variety of O-ring face seal fittings (ORFS) to let you connect the test gaugesinto the system and contains the following
---------------------------------------------------------------------
TOR4079–3 SWIVEL NUT RUN TEE 4 ORFS (9/16–18) $32.67 each (kit contains 2)
-------------------------------------------------------------

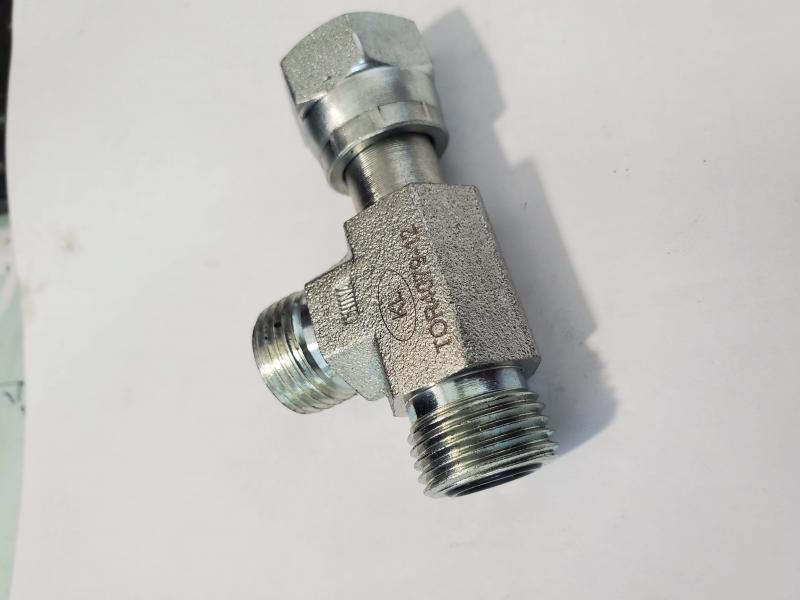

TOR4079–12 SWIVEL NUT RUN TEE 6 ORFS (11/16–16) $76.77 each (kit contains 2)
-------------------------------------------------------

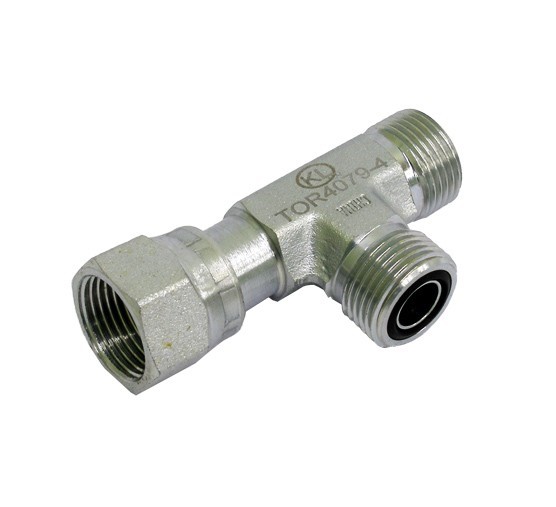

TOR4079–4 SWIVEL NUT RUN TEE 8 ORFS (13–16–16) $77.44 each (kit contains 2)
----------------------------------------------------------------

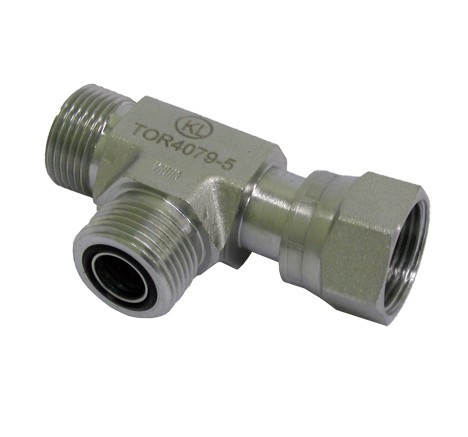

TOR4079–5 SWIVEL NUT RUN TEE 10 ORFS (1–14) $47.74 each (kit contains 2)
---------------------------------------------------------------
TOR4079–13 Plug 4 ORFS (9/16–18)
$--.-- each (kit contains 2)
---------------------------------------------------------------------
TOR4079–14 Plug 6 ORFS (11/16–16)
$-18.58 each (kit contains 2)
---------------------------------------------------------------
TOR4079–15 Plug 8 ORFS (13–16–16)
$--.-- each (kit contains 2)
---------------------------------------------------------------------
TOR4079–16 Plug 10 ORFS (1–14)
$21.15 each (kit contains 2)
--------------------------------------------------------------------
TOR4079–16 Plug 10 ORFS (1–14)
$21.15 each (kit contains 2)
---------------------------------------------------------------------
TOR4079–17 Cap 4 ORFS (9/16–18)
$17.80 each (kit contains 2)
---------------------------------------------------------------------
TOR4079–18 Cap 6 ORFS (11/16–16)
$--.-- each (kit contains 2)
-------------------------------------------------------------------
TOR4079–19 Cap 8 ORFS (13–16–16)
$11.77 each (kit contains 2)
--------------------------------------------------------------------
TOR4079–20 Cap 10 ORFS (1–14)
$--.-- each (kit contains 2)
---------------------------------------------------------------------
TOR4079–8 Union 6 ORFS (11/16–16) to8 SAE-ORB (3/4–16)
$ --.-- each (kit contains 1)
---------------------------------------------------------------------
TOR4079–9 Union 8 ORFS (13–16–16) to8 SAE-ORB (3/4–16)
$20.91 each (kit contains 1)
-------------------------------------------------------------------

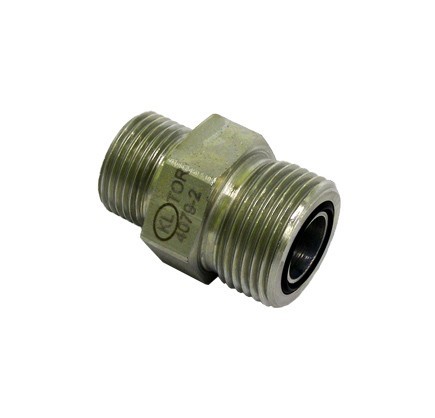

TOR4079–2 Union 10 ORFS (1–14) to8 SAE-ORB (3/4–16)
$82.24 each (kit contains 1)
---------------------------------------------------------------------
TOR4079–7 Reducer 10 ORFS (1–14) to8 SAE-ORB (3/4–16)
$--.-- each (kit contains 1)
--------------------------------------------------------------------
TOR4079–6 Reducer 12 ORFS (1 3/16–12) to8 SAE-ORB (3/4–16)
$73.49 each (kit contains 1)
--------------------------------------------------------------------
TOR4079–10 Test Connector Female 4 ORFS (9/16–18)
$84.29 each (kit contains 2)
--------------------------------------------------------------------
TOR4079–11 Test Connector Female 6 ORFS (11/16–16)
$90.77 each (kit contains 2)
--------------------------------------------------------------------
TOR4079–21 Test Connector Female 8 ORFS (13/16–16)
$--.-- each (kit contains 2)
-------------------------------------------------------------------
TOR4079–1 Test Connector Female 10 ORFS (1–14)
$84.92 each (kit contains 2)
--------------------------------------------------------------------
TOR4079–22 Test Connector Male 4 SAE-ORB (7/16–20)
$--.-- each (kit contains 2)
--------------------------------------------------------------------
TOR4079–23 Test Connector Male 1/8 NPTF
$--.-- each (kit contains 2)
HYDRAULIC TEST KIT TOR47009
$705.74
Used to take various hydraulic pressure readings for diagnostic tests. Quick disconnect fittings provided attach directly to mating fittings on test unit without the use of tools. High pressure hose (5ft.) is provided for remote readings. Refer to product operators manual for correct pressure specifications.

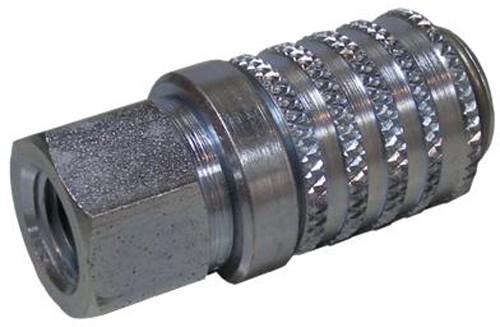

TOR213165
Quick Disconnect Socket QTY 4
Attaches directly to mating fittings on test unit without the use of tools.
$54.81
========================================
TOR213166 Quick Disconnect Plug QTY 1
Attaches directly to mating fittings on test unit without the use of tools.
$18.72
=======================================

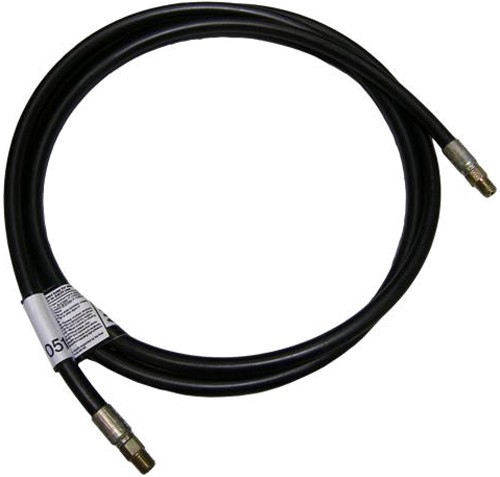

TOR307984 | Hose Assembly |
QTY 1
5 ft High Pressure Hose.
$97.92
=====================================

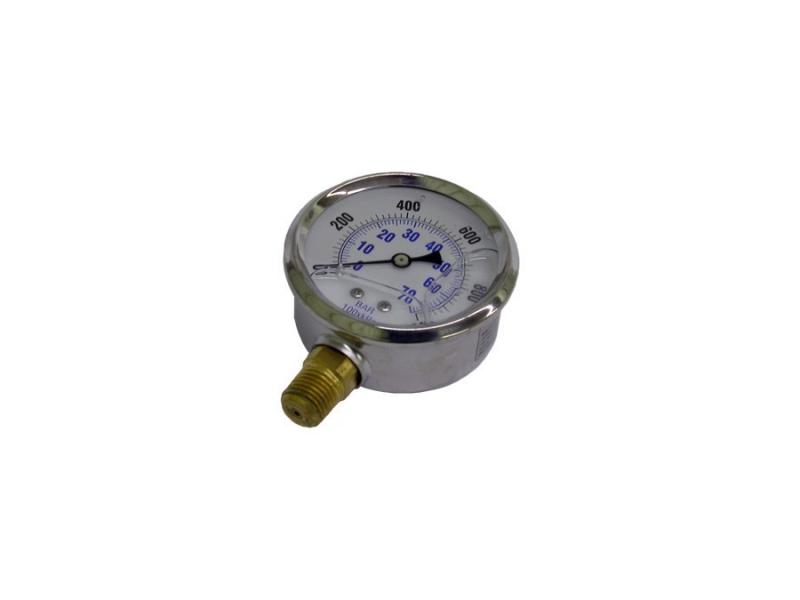

AT40012 1,000 PSI Pressure Gauge $53.87
AT40017 5,000 PSI Pressure Gauge $47.61
AT40018 10,000 PSI Pressure Gauge $71.13

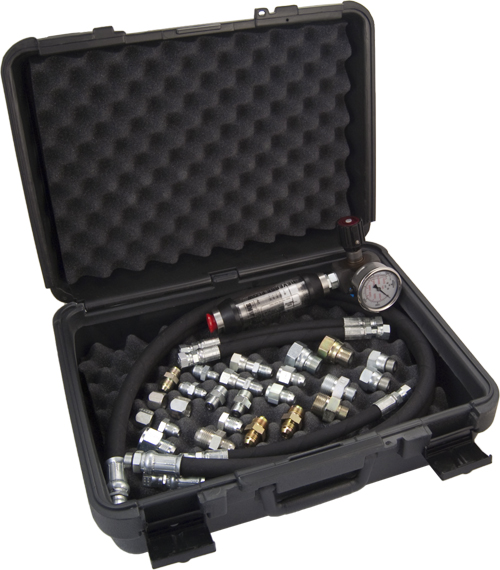

HYDRAULIC TESTER AND HOSE FITTING KIT TOR214678
$2,069.07
Recommended for use in testing hydraulic circuits and components for flow and pressure capacities. Fittings allow connection of tester to most TORO products.
Includes flowmeter, hoses, fittings and o-ring face seal fittings required for newer machines.
TOR202849 Flare Plug QTY 1
3/4 - 16UNF Male JIC
$6.44
========================================
TOR203093 Cap Nut QTY 2
3/4 - 16UNF Female JIC
$6.25
========================================
TOR203205 Cap Nut QTY 1
3/4 - 14UNF Female JIC
$7.15
========================================
TOR203207 Union Flare QTY 1
3/4 - 16UNF Male JIC x 3/4 - 16 UNF Male JIC
$6.98
=======================================
TOR203595 Union Flare QTY 1
3/4 - 16UNF Male JIC x 1 1/16 - 12UNF Male JIC
$9.87
=======================================
TOR207155 Union Flare QTY 2
3/4 - 16UNF Male JIC x 9/16 - 18UNF Male JIC
$10.13
=======================================
TOR207541 Flare Plug QTY 2
7/8 - 14UNF Male JIC
$7.24
======================================
TOR207591 Union Flare QTY 2
3/4 - 16UNF Male JIC x 7/8 - 14UNF Male JIC
$10.94
======================================
TOR208045 Straight Reducer QTY 1
1 1/16 - 16UNF Female JIC x 7/8 - 14UNF Male JIC
$11.27
=======================================
TOR208046 Striaght Reducer QTY 2
7/8 - 14UNF Female JIC x 3/4 - 16UNF Male JIC
$7.45
=======================================
TOR214679 Adapter QTY 2
13/16 - 16UN Male ORS x 1 3/16 - 12UN Male ORS
$19.31
======================================
TOR214681 Tube End Reducer QTY 2
13/16 - 16UN Male ORS x 1" - 16UN Female ORS
$17.60
=======================================
TOR214682 Tube End Reducer QTY 2
1" - 14UNS Male ORS x 1 3/16 - 12UN Female ORS
$46.36
=======================================
TOR214683 Tube End Reducer Assembly QTY 2
11/16 - 16UN Female ORS x 11/16 - 16UN Female ORS
$38.27
=======================================
TOR214687 Adapter QTY 2
11/16 - 16UN Male ORS x 13/16 - 16UN Male ORS
$14.55
======================================
TOR214695 Tube Assembly QTY 1
9/16 - 18UNF Female JIC x 9/16 - 18UNF Female JIC
$24.30
=======================================
TOR218657 Sraight Fitting QTY 2
3/4 - 16UNF Male JIC x 13/16 - 12UN Female ORS
$11.46
=======================================
TOR308432 Hose Assembly QTY 2
Used for flow and pressure capacities
$66.73
======================================
AT40001 HYDRAULIC FLOWMETER : MAX 15 GPM WITH PRESSURE GAUGE QTY 1
Used to diagnose faults in hydraulic circuits, determine hydraulic horsepower and test for component wear such as hydraulic valve and cylinder leakage. These Flowmeters can be part of a predictive maintenance program, allowing strategized pump, valve, motor and cylinder rebuilding. Contains a glycerin filled pressure gauge.
$1169.52
=====================================
FITTING UPDATE KIT TOR214677
$335.02
Required to update hydraulic flow test kits to be compatible with products using o-ring face seal fittings. Includes fittings to convert J.I.C. flare fittings to o-ring face seal fittings.
TOR214679 Adapter QTY 2
13/16 - 16UN Male ORS x 1 3/16 - 12UN Male ORS
$19.32
======================================
TOR214680 Straight Fitting QTY 2
3/4 - 16UNF Male JIC x 13/16 - UN Female ORS
$9.99
======================================
TOR214681 Tube End Reducer QTY 2
13/16 - 16UN Male ORS x 1" - 16UN Female ORS
$17.60
=======================================
TOR214682 Tube End Reducer QTY 2
1" - 14UNS Male ORS x 1 3/16 - 12UN Female ORS
$46.36
=======================================
TOR214683 Tube Assembly QTY 2
11/16 - 16UN Female ORS x 11/16 - 16UN Female ORS
$38.27
=======================================
TOR214687 Adapter QTY 2
11/16 - 16UN Male ORS x 13/16 - 16UN Male ORS
$14.55
========================================
The High Flow Hydraulic Filter Kit can be used to filter the oil after a component failure in order to prevent debris from transmitting throughout the system causing subsequent failures.
$2,534.94
TOR6012 Replacement filter for the TOR6011 High Flow Hydraulic Filter Kit.
$196.01
