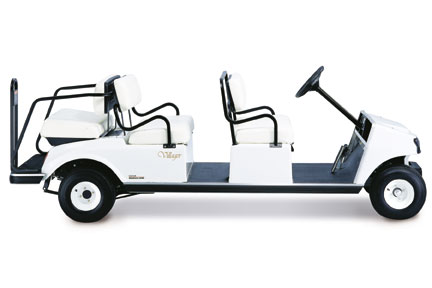

Villager 6 Electric with exclusive ZEV IQ Plus System

POWER SUPPLY

Drive Motor

48-volt shunt/sepex

Horsepower

3.7 @ 3,400 rpm (continuous) 21.0 @ 2,000 rpm (peak)

Drive Unit

12.3:1 direct-drive axle, double reduction helical gear

Electrical System

Batteries

Eight 6-volt

Charger

Automatic, computer-controlled 48-volt DC, 17 amp, UL and CUL listed; International CE marked available

Controller

500 amp Solid State

STEERING/SUSPENSION

Steering Self-adjusting rack & pinion

Front Suspension Independent leaf spring with dual hydraulic shocks

Rear Suspension Leaf springs with dual hydraulic shocks

Brakes Four-wheel, mechanical drum

Park Brake Foot-operated, multi-lock

FRAME/CHASSIS

Frame/Chassis Aluminum I-Beam

Front Tires 18 x 6.50-8, 6-ply rated, Premium Tread

Rear Tires 18 x 8.50-8, 6-ply rated, Premium Tread

Instrumentation Battery capacity indicator,

battery warning light

DIMENSIONS

Total Vehicle Capacity 1,500 lb (681 kg)

Overall Length 124" (315 cm)

Overall Width 47.3" (120.1 cm)

Overall Height 48" (121.9 cm)

Wheelbase 98.5" (250.2 cm)

Ground Clearance

Under Differential 4.5" (11.4 cm)

Tread 34.5"/38.5" (87.6 cm/97.8 cm)

Dry Weight Less Batteries 590 lb (267.9 kg)

Speed Range 5 - 17 mph (8-27.3 kph)

Outside Clearance Circle 24.7 ft (7.5 m) dia.

Turning Radius 12 ft (3.7 m)

Intersecting Aisle Radius 90" (228.6 cm)
