Toro Hydroject Tools
HYDROJECT™ SERVICE TOOL KIT TOR4020
KIT CONTENTS:
| PART # | DESCRIPTION |
| TOR4001 | Nitrogen Accumulator Kit |
| TOR4002 | Accumulator Seal Installation Tool |
| TOR4003 | Accumulator Cap Wrench |
| TOR4005 | Water System Pressure Gauge |
| TOR4006 | Flow Meter |
| TOR4007 | Valve Lift Indicator |
| TOR4008 | Valve Spring Compressor |
| TOR4009 | Valve Seal Installation Tool |
| TOR4010 | Pump Seal Installation Tool |
| TOR4011 | Seal Insertion Mandrel |
| TOR4013 | Pump Seal Extraction Tool |
| TOR4014 | Pump Seal Outlet Cover |
| TOR4015 | Pump Wear Sleeve Driver |
NITROGEN ACCUMULATOR KIT TOR4001

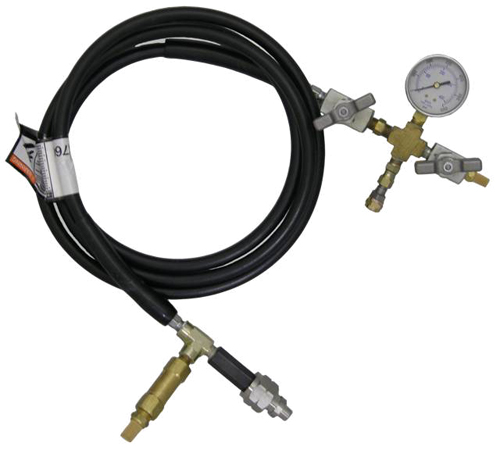

The charging valve connects the accumulator to a high pressure (3000-3500 PSI) nitrogen tank for checking and recharging the accumulator. Gauge has dual graduations: 0-6000 PSI, 0-40,000kPa.Included in the Hydroject™ Service Tool Kit (TOR4020).
CAUTION: Do not use any other gas or compressed air to charge accumulators. Using other gasses (e.g. acetylene, oxygen, or compressed air) could cause an explosion, possibly resulting in personal injury or death.
REPLACEMENT PARTS:
PART # DESCRIPTION TOR4001-1 Regulator Fitting TOR4001-10 Copper Washers TOR4001-7 Accumulator Adapter Fitting
REPLACEMENT REGULATOR FITTING TOR4001-1
COPPER WASHERS TOR4001-10

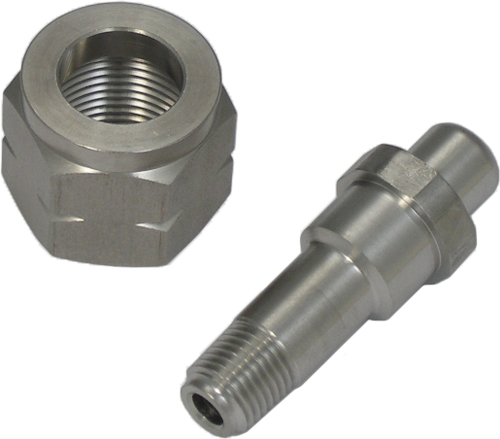

ACCUMULATOR ADAPTER FITTING TOR4001-7
ACCUMULATOR SEAL INSTALLER TOR4002
A special tool required for installing the piston seal during accumulator rebuilding. Included in the Hydroject™ Service Tool Kit (TOR4020).ACCUMULATOR CAP WRENCH TOR4003

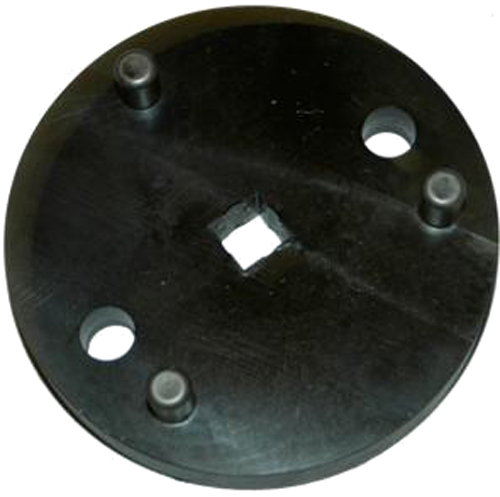

After discharging the accumulator, use this special 1/2" drive wrench for removing the accumulator cap and base. Also used for properly torquing the cap and base after repairs. Included in the Hydroject™ Service Tool Kit (TOR4020).WATER SYSTEM PRESSURE GAUGE TOR4005
Comprised of an extremely rugged hydraulic pressure gauge and special fitting. This tool is temporarily connected to the high pressure water system measuring the water pressure available at the cycling valve. Included in the Hydroject™ Service Tool Kit (TOR4020).REPLACEMENT PARTS:

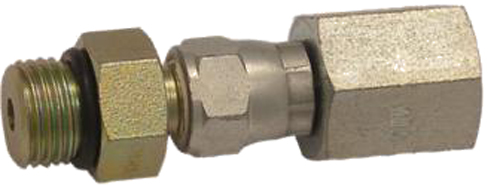

TOR4005-10 Male Adapter Fitting
FLOW METER TOR4006
This flow meter is comprised of an electronic digital flow meter and hydraulic pressure gauge. This tool is used to measure pump efficiency and inlet water pressure. Included in the Hydroject™ Service Tool Kit (TOR4020).VALVE LIFT INDICATOR TOR4007
A dial indicator and special adapter for measuring and adjusting cycling valve lift. Included in the Hydroject™ Service Tool Kit (TOR4020).
Range: .001 to 1.000 inches in .001 graduations.
